300A Bus Bar 12V DC Waterproof Power Distribution Block with 4 x 3/8" (M10) Terminal Studs Heavy Duty Battery Terminal Block 12v Junction Block for Automotive Marine RV(Positive & Ground)
4.1 (73 items)
Limited Time SaleUS$31.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209169068 | Release Date | 2026/03/29 | List Price | US$21.20 | Model Number | 209169068 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

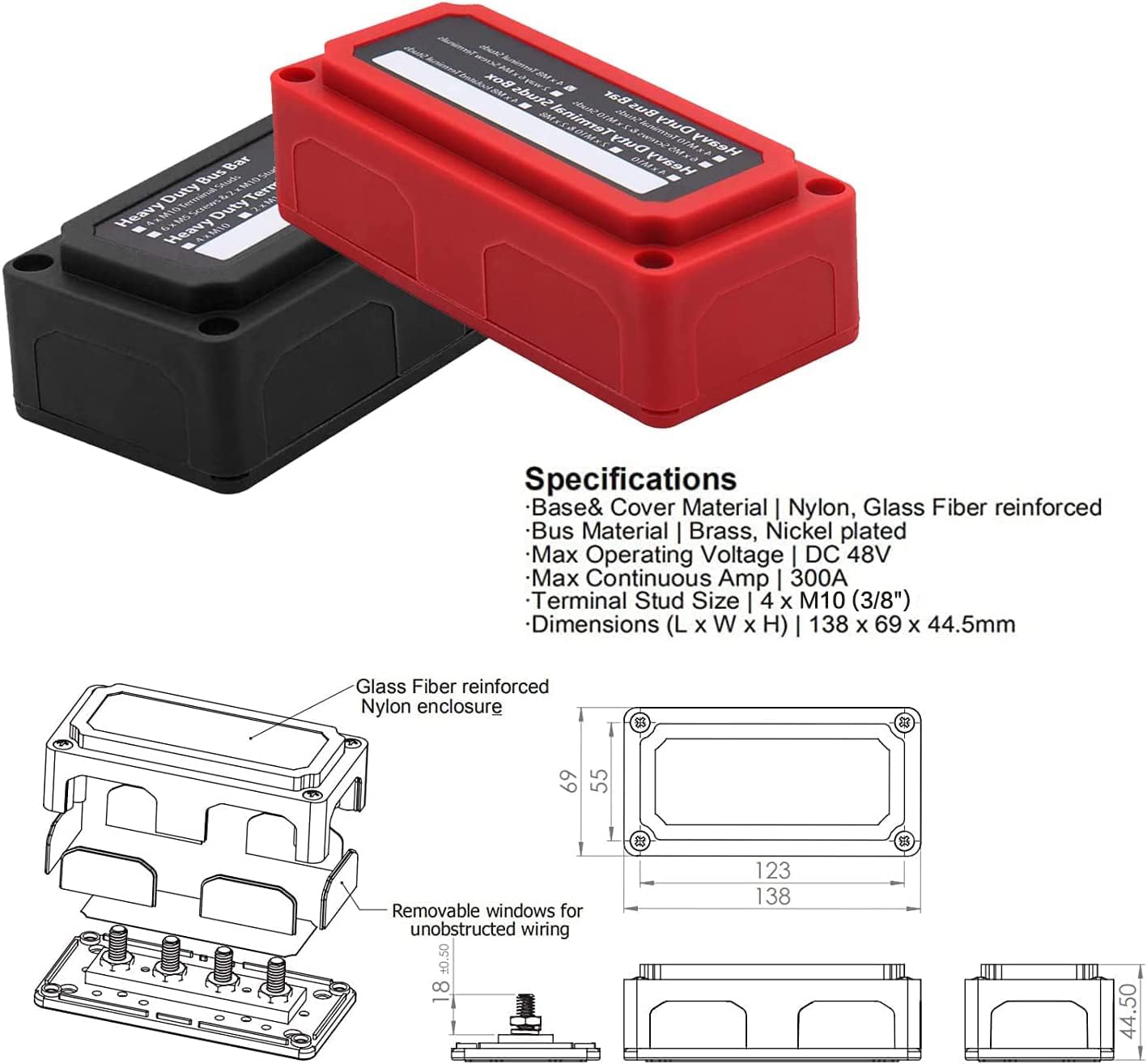

- Dimensions: The battery junction block is measured (L x W x H): 138 x 69 x 44.5 mm (5.433" x 2.72" x 1.75"); Stud size: M10 (3/8")
- High Quality: Bus Material: The bus bar is made of brass and nickel plated, which has good electric conduct performance and sturdy rust-resistant; The base is made of nylon - glass fiber reinforced to protect your safety, ensures great mechanical strength and durability

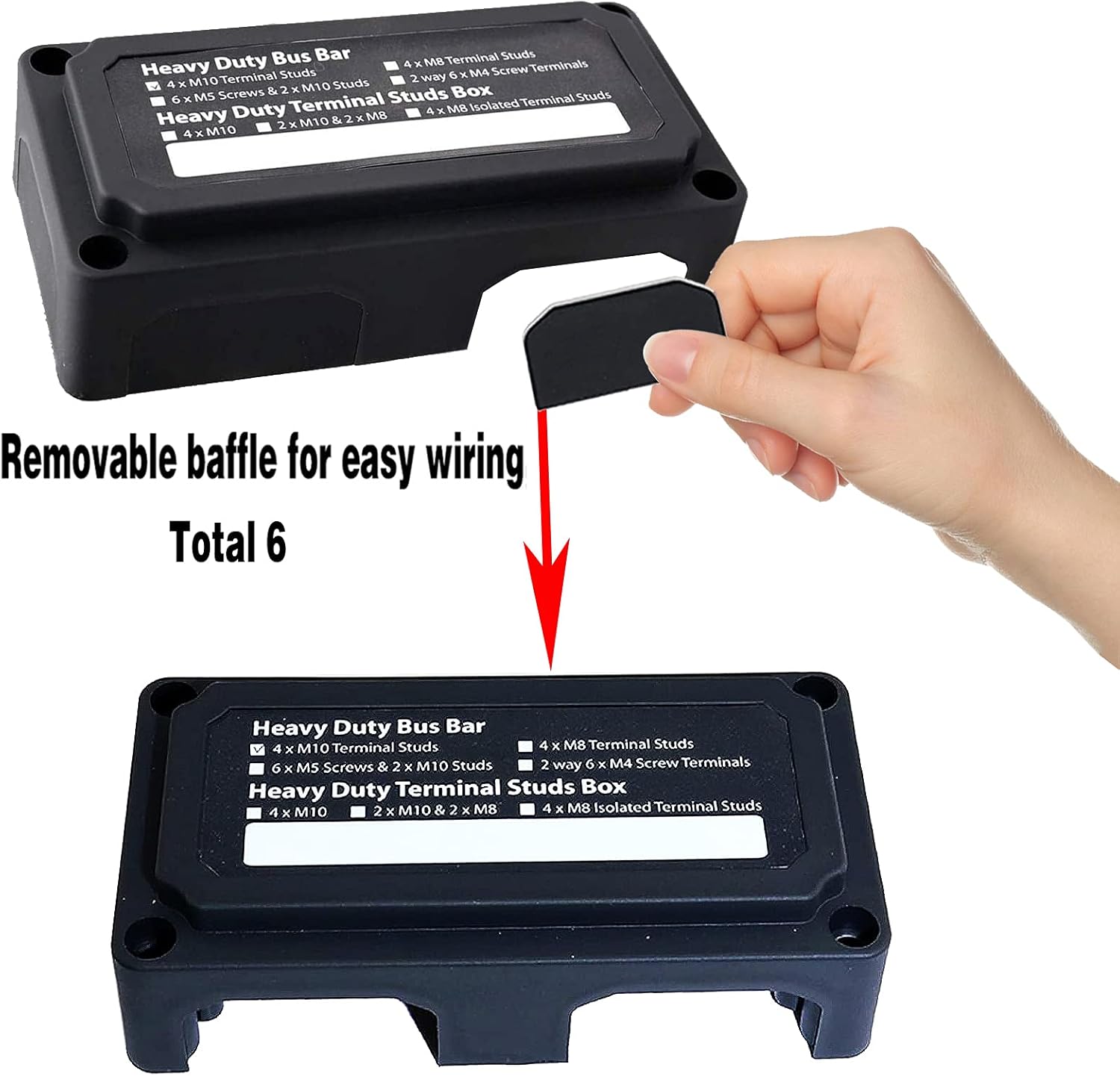

- Waterproof & Dustproof: The power distribution block with six removable side plates, a insulated rear cover, that's designed to withstand rain and dust, resist the air and seawater erosion

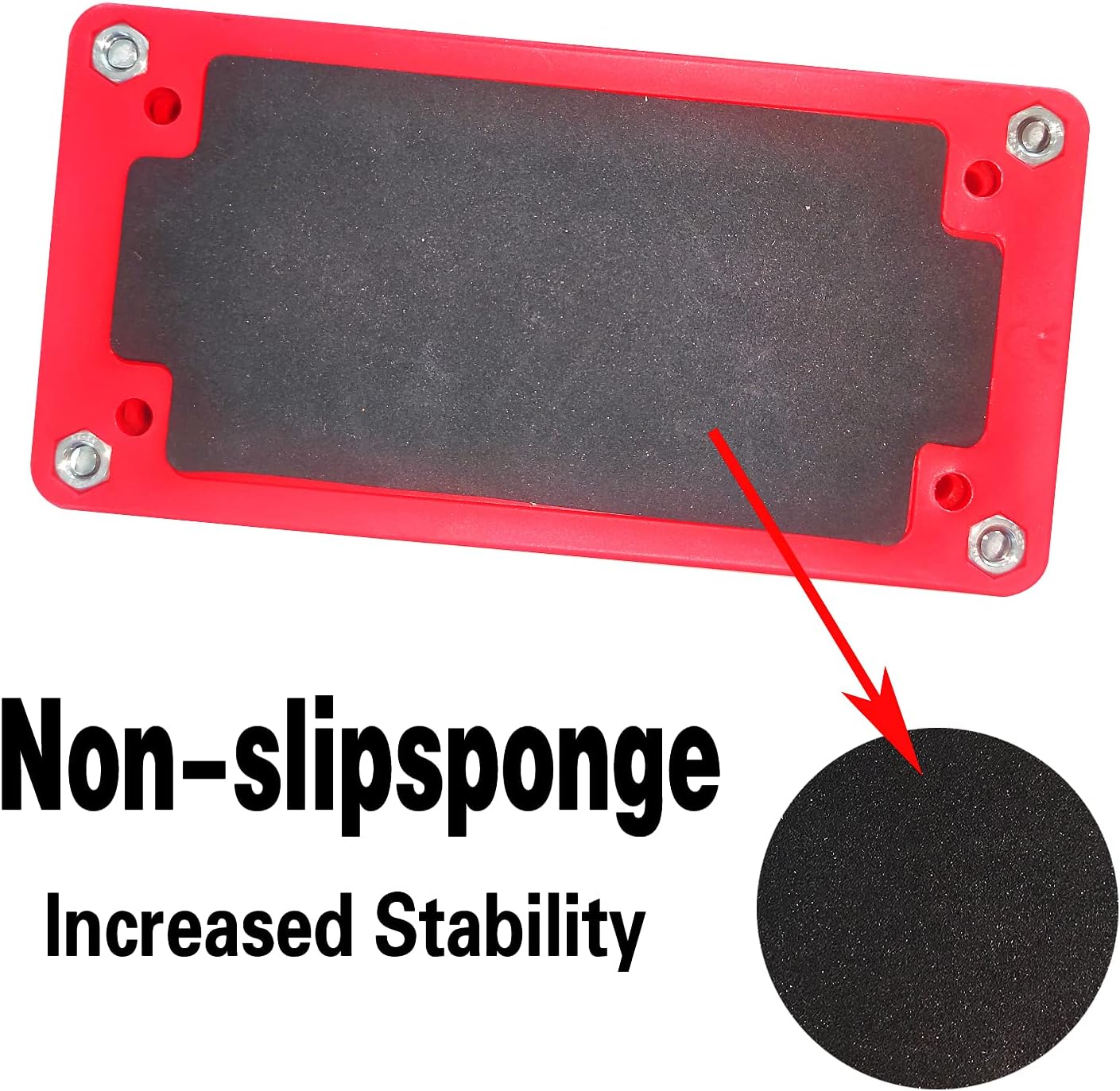

- Unique Design: The base has non-slip sponge, increased Stability; And the blank write-on space on the top allows easy labeling for each branch

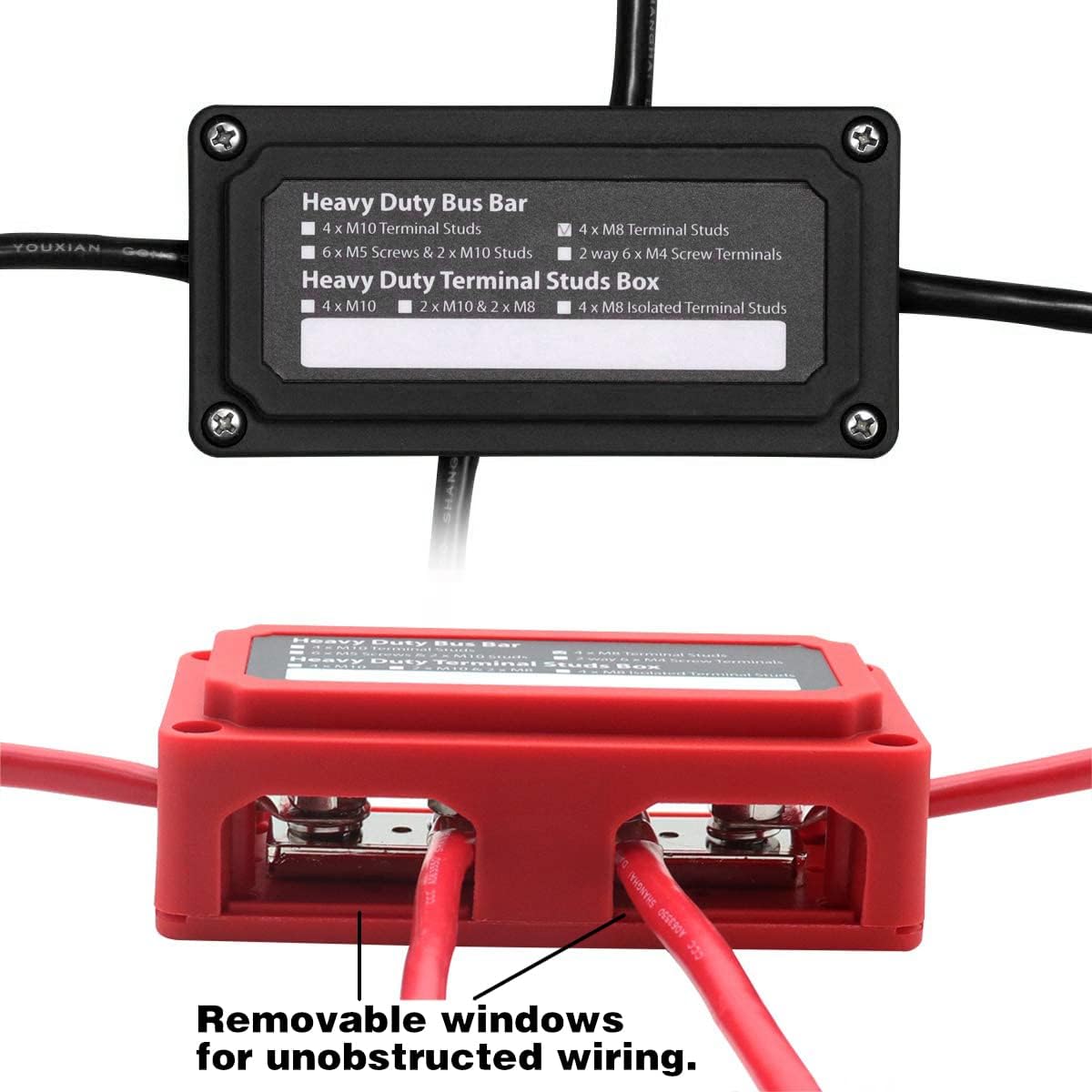

- Easy to Mount: Surface screw fixed installation, four mounting holes make this terminal block easier to be mounted in any orientation; Removable windows for unobstructed wiring
| Color | M10 Black&Red |
|---|---|
| Model | F3607RB-M10 |
| Voltage | 48 Volts (DC) |
| Brand Name | jamgoer |
| Part Number | F3607RB-M10 |
| Manufacturer | jamgoer |
| Material Type | Brass, Nylon, Plastic, Stainless Steel |
| Mounting Type | surface |
| Connector Type | Screw |
| Current Rating | 300 Amps |
| Item Type Name | BUSBAR |
| Number Of Poles | 4 |
| Centerline Length | 138 Millimeters |
| Number Of Contacts | 4 |
| Included Components | 2 X Busbar |
| Number of Positions | 16 |
| Warranty Description | No |
| Item Dimensions W x H | 2.72"W x 1.75"H |
